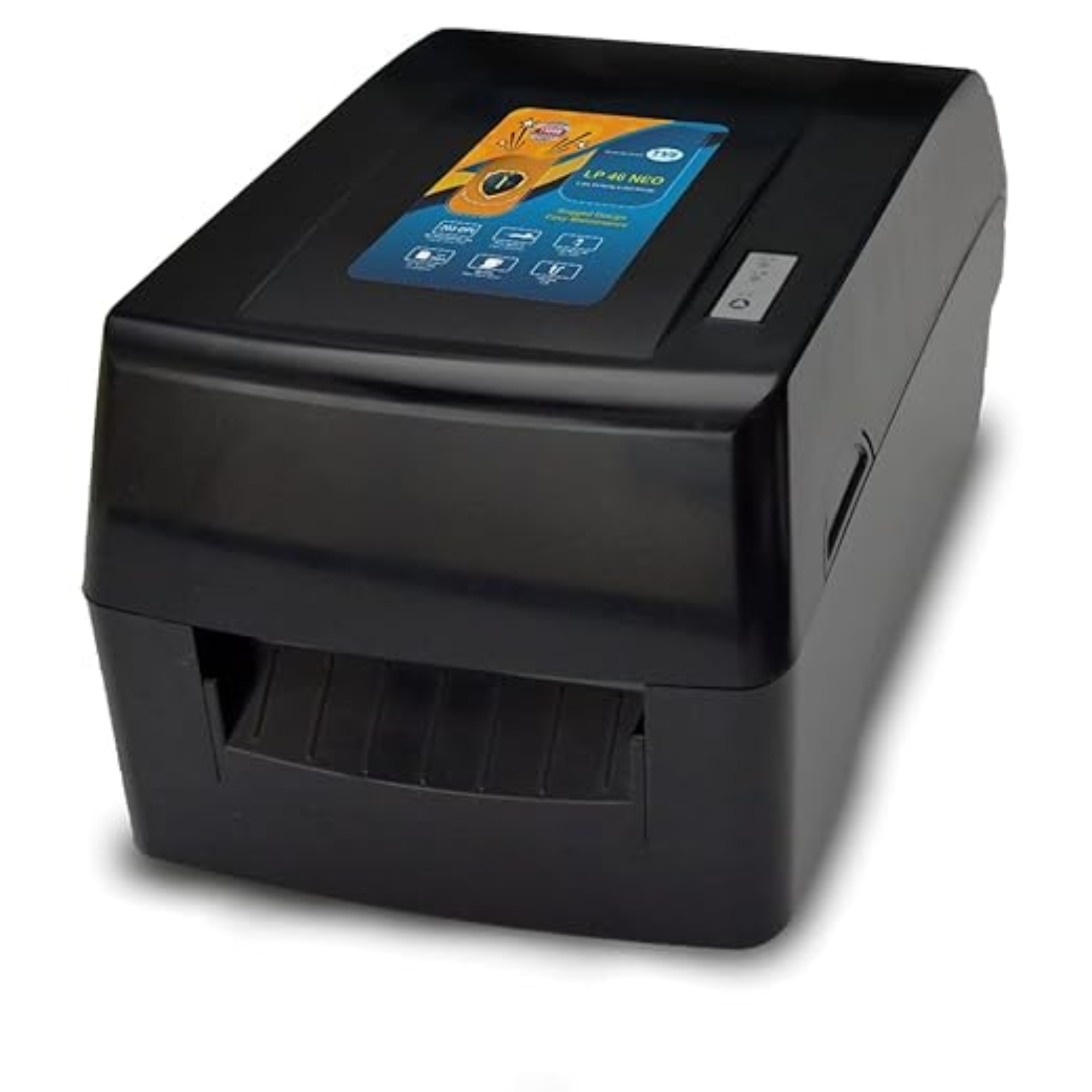

TVS LP46 Neo – 4.25″ Thermal Label & Barcode Printer

Key Specifications

Printing Method: Direct Thermal and Thermal Transfer

Resolution: 203 dpi (8 dots/mm)

Print Width: Up to 108 mm (4.25 inches)

Print Speed: Up to 6 inches per second (150 mm/s)

Media Types: Continuous roll, fanfold, and labels with black mark

Media Width: 19 mm to 120 mm

Media Thickness: 0.06 mm to 0.25 mm

Ribbon Capacity: 300 meters

Ribbon Width: 40 mm to 110 mm

Interface: USB 2.0 and Serial

Sensors: Movable transmission and reflection sensors

CPU: 32-bit RISC

Memory: 8 MB Flash, 16 MB SDRAM

Operating Conditions: Temperature: 5°C to 40°C, Humidity: 20% to 80% (non-condensing)

Storage Conditions: Temperature: -10°C to 60°C, Humidity: 10% to 90% (non-condensing)

Dimensions: 210 mm (W) × 185 mm (H) × 280 mm (D)

Weight: Approximately 2.7 kg
