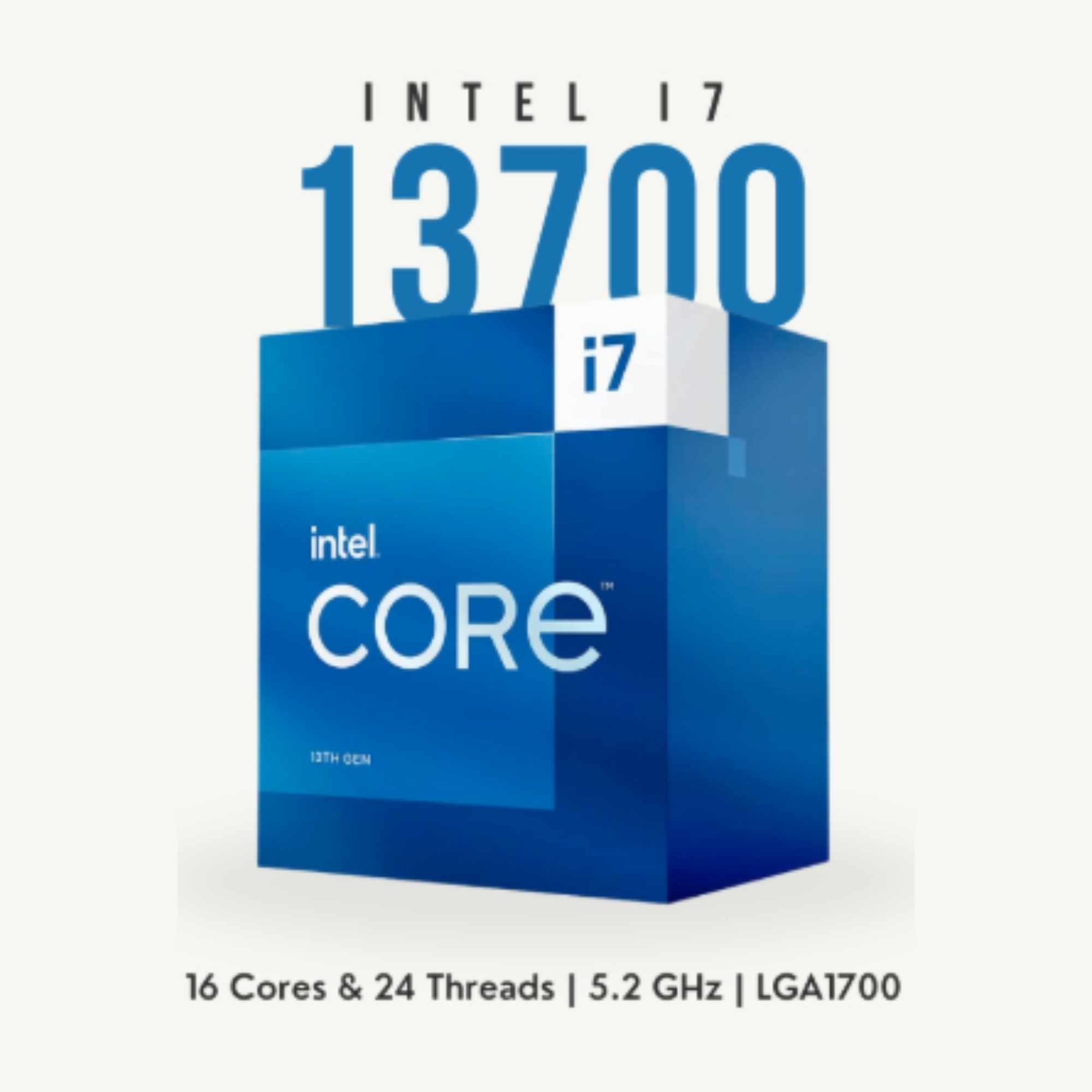

Intel Core I7 13TH Generation Processor 13700 – 2.1 GHZ LGA1700 with Graphics

Brand / Series: Intel Core i7 – 13th Generation (Raptor Lake)

Cores & Threads: 16 cores (8 Performance-cores + 8 Efficient-cores), 24 threads

Base Clock:

• P-cores: 2.1 GHz

• E-cores: 1.5 GHz

Max Turbo Frequency: Up to 5.2 GHz (with Intel Turbo Boost Max 3.0)

Cache: 30 MB Intel Smart Cache (L3) + 24 MB L2 Cache

Processor Base Power (TDP): 65 W

Maximum Turbo Power: Up to 219 W

Integrated Graphics: Intel UHD Graphics 770 (Dynamic frequency up to 1.6 GHz)

Memory Support:

• DDR5 up to 5600 MT/s

• DDR4 up to 3200 MT/s

• Max Memory Size: 128 GB

• Dual Channel Support

PCI Express Version: PCIe 5.0 & PCIe 4.0 (up to 20 lanes)

Socket Compatibility: Intel Socket LGA 1700

Chipset Compatibility: Intel 600 & 700 series chipsets

Technology Support: Intel Hyper-Threading, Intel Turbo Boost Max 3.0, Intel Optane Memory Support, Virtualization Technology (VT-x, VT-d), Thermal Velocity Boost

Max Operating Temperature (Tjunction): 100 °C
