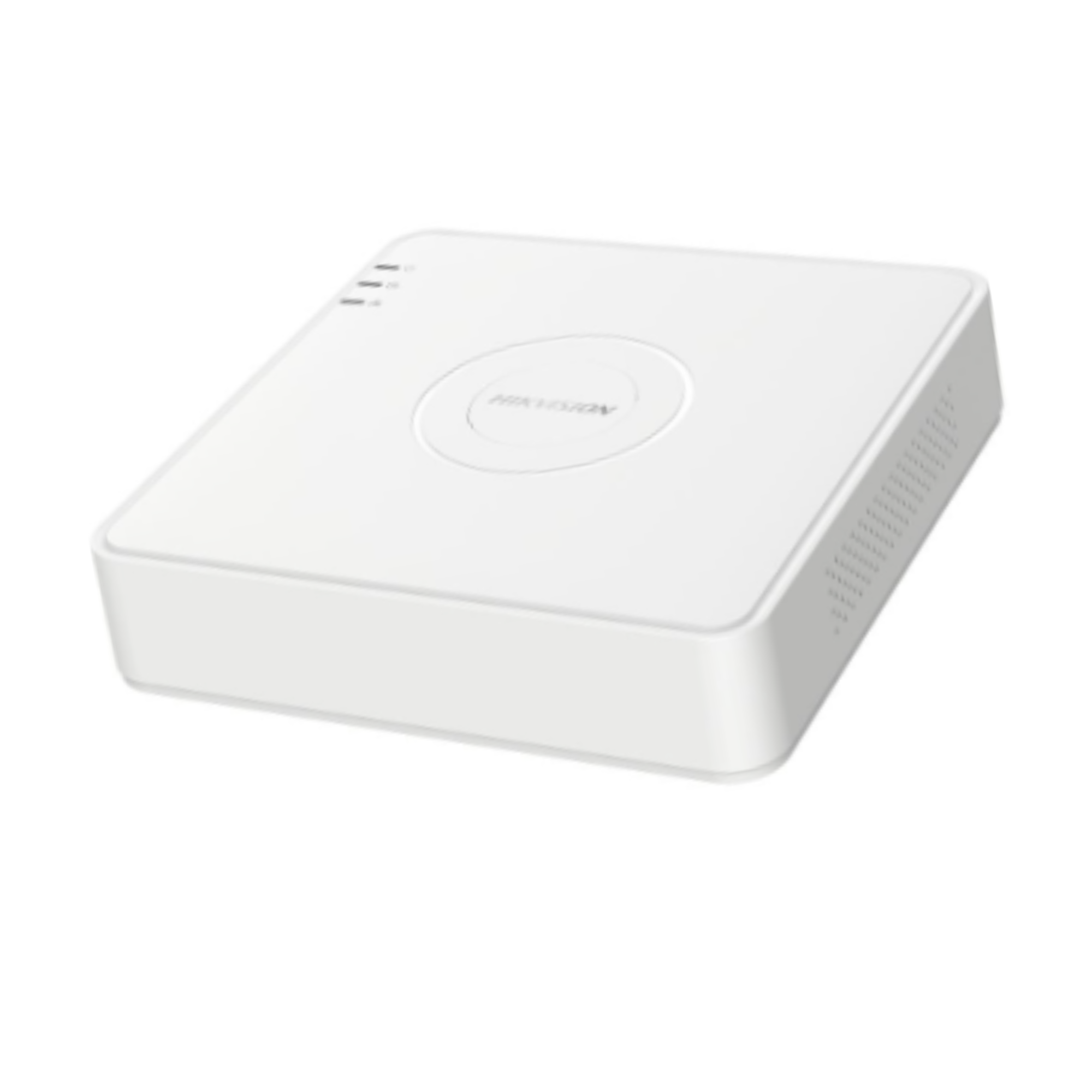

Hikvision DVR 4 channel 1080p H.265, Inbuilt audio, DS-7104HGHI-K1

Description

Features:

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Audio via coaxial cable
• Up to 5-ch IP camera inputs (up to 2 MP)
• Up to 1080p Lite@30 fps encoding capability
• Max. 1200 m for 720p HDTVI signal

Human/Vehicle Analysis

• Deep learning-based Motion Detection 2.0 is enabled by default for all analog channels

• Supports human and vehicle classification

• Greatly reduces false alarms from non-relevant objects such as leaves or lights

• Quick search supported by object or event type

---

Video and Audio

Video Input

• 1 channel (expandable up to 4 channels)

• Supports up to 1080p resolution

• Compatible with H.265+/H.265/H.264+/H.264 HD cameras

Analog Video Input

• 4 channels

• BNC interface (1.0 Vp-p, 75 Ω)

• Supports coaxitron connection

Supported Video Formats

• HDTVI: 1080p25, 1080p30, 720p25, 720p30

• AHD: 1080p25, 1080p30, 720p25, 720p30

• HDCVI: 1080p25, 1080p30, 720p25, 720p30

• CVBS: Supported

Video Output

• HDMI Output: 1 channel, resolutions:

  • 1920 × 1080 / 60Hz

  • 1280 × 1024 / 60Hz

  • 1280 × 720 / 60Hz

• VGA Output: 1 channel, same resolutions as HDMI

• Output Mode: HDMI/VGA simultaneous output

Audio

• Audio Input:

  • 1 channel RCA (2.0 Vp-p, 1 KΩ)

  • 4 channels via coaxial cable

• Audio Output: 1 channel RCA (Linear, 1 KΩ)

• Two-Way Audio: Reuses the first audio input

Playback

• Synchronous playback on up to 4 channels

---

Recording

Video Compression

• H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Encoding Resolution

• For 1080p stream:

  • 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF

• For 720p stream:

  • 720p / WD1 / 4CIF / VGA / CIF

• For SD stream:

  • WD1 / 4CIF / VGA / CIF

Frame Rate

• Main Stream:

  • 1080p Lite, 720p Lite, WD1, 4CIF, VGA, CIF @ 25 fps (PAL) / 30 fps (NTSC)

  • 720p, WD1, 4CIF, VGA, CIF @ 25 fps (PAL) / 30 fps (NTSC)

• Sub-stream:

  • 4CIF @ 15 fps

  • CIF / QVGA @ 25 fps (PAL) / 30 fps (NTSC)

Video Bitrate

• 32 Kbps to 4 Mbps

Stream Type

• Video only or Video & Audio

Audio Compression

• G.711u

Audio Bitrate

• 64 Kbps

---

Network

Bandwidth and Protocols

• Total Bandwidth: 64 Mbps

• Protocols Supported:

  • TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Remote Access

• Supports up to 32 remote connections

Network Interface

• 1 × RJ45, 10/100 Mbps self-adaptive Ethernet

---

Auxiliary Interface

Storage

• SATA Interface: 1

• Disk Capacity: Up to 4 TB per disk

USB Interface

• 2 × USB 2.0 (rear panel)

Alarm In/Out

• Not available

---

General Specifications

Power and Consumption

• Power Supply: 12 VDC, 1.5 A

• Power Consumption: ≤ 16 W (without HDD)

Operating Conditions

• Temperature: -10 °C to 55 °C (14 °F to 131 °F)

• Humidity: 10% to 90% (non-condensing)

Dimensions and Weight

• Dimensions (W × D × H): 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)

• Weight: ≤ 0.8 kg (1.8 lb, without HDD)
