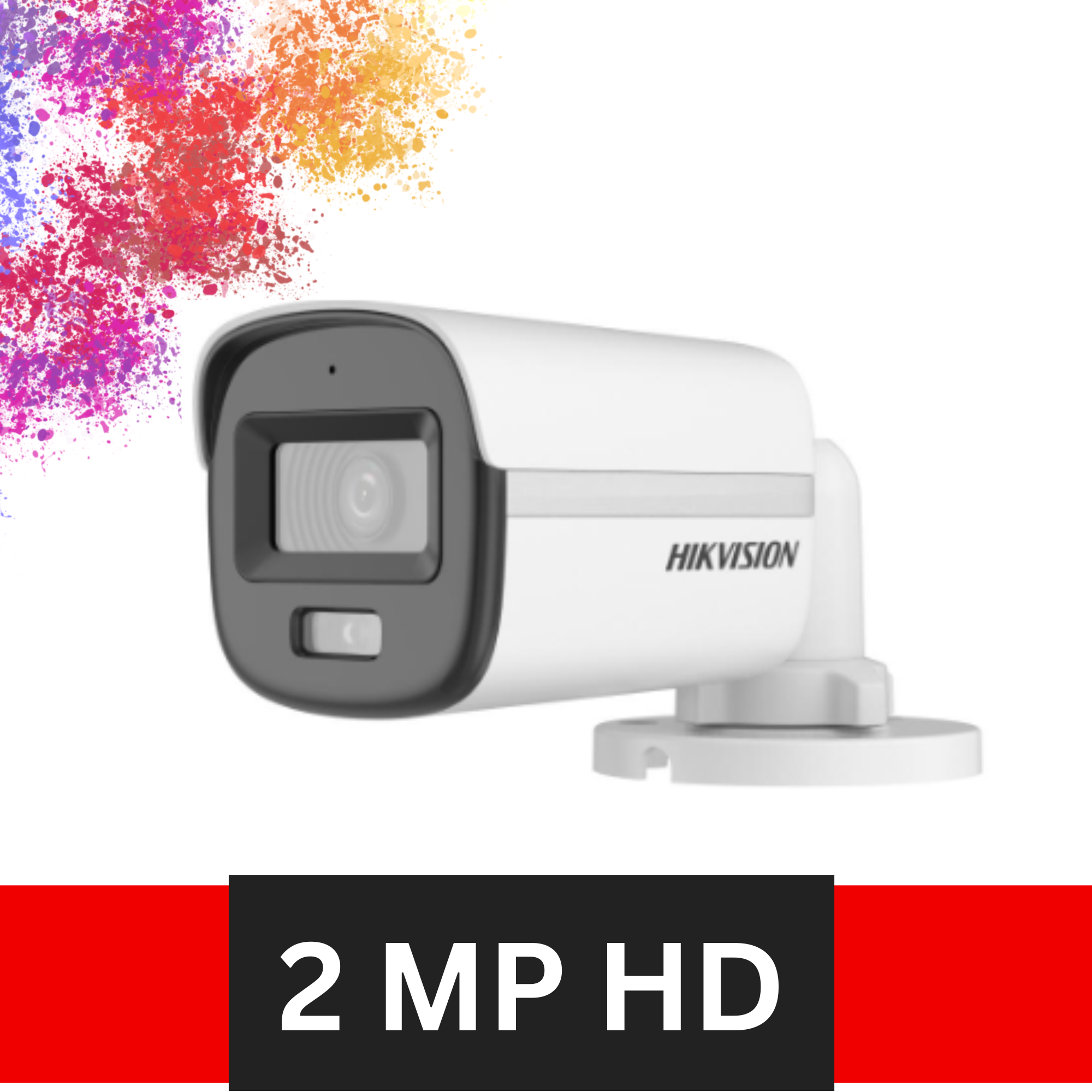

HIKVISION 2MP HD Bullet Camera (Color+Mic) DS-2CE10DF0T-PFS

Description

Features:

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Camera Specifications

Image Sensor

• Type: 2 MP CMOS

• Maximum Resolution: 1920 (H) × 1080 (V)

• Minimum Illumination:

  • 0.001 Lux @ (F1.0, AGC ON)

  • 0 Lux with white light

Shutter Time

• PAL: 1/25 s to 1/50,000 s

• NTSC: 1/30 s to 1/50,000 s

Angle Adjustment

• Pan: 0° to 360°

• Tilt: 0° to 90°

• Rotate: 0° to 360°

Signal System

• PAL / NTSC

---

Lens Details

Lens Type

• Fixed focal lens: 2.8 mm or 3.6 mm

Field of View (FOV)

• 2.8 mm Lens:

  • Horizontal: 105°

  • Vertical: 55°

  • Diagonal: 125°

• 3.6 mm Lens:

  • Horizontal: 84°

  • Vertical: 45°

  • Diagonal: 99°

Lens Mount

• M12

---

Illumination

Supplement Light

• Type: White Light

• Range: Up to 20 m

• Smart Supplement Light: Yes

---

Image Features

Image Parameters

• Modes: STD / HIGH-SAT / HIGHLIGHT

• Adjustable Settings: Brightness, Sharpness, Anti-banding, AGC

Frame Rate

• TVI: 1080p @ 25/30 fps

• CVI: 1080p @ 25/30 fps

• AHD: 1080p @ 25/30 fps

• CVBS: PAL / NTSC

Day/Night Mode

• Color

Image Enhancement

• Digital WDR (DWDR)

• Backlight Compensation (BLC)

• Highlight Compensation (HLC)

• Global Enhancement

Noise Reduction

• 2D DNR / 3D DNR

White Balance

• Auto / Manual

---

Interface & Communication

• Video Output: Switchable TVI / AHD / CVI / CVBS

• Alarm Feature: Solid Light Alarm (White Light)

• Communication Protocol: HIKVISION-C

• Language: English

---

General Specifications

• Material: Plastic

• Power Supply: 12 VDC ± 25%, Max. 2 W
  (One power adapter per camera recommended)

• Dimensions: 161.1 mm × 68.4 mm (6.34″ × 2.69″)

• Weight: Approx. 389 g (0.86 lb)

• Operating Conditions:

  • Temperature: -40°C to 60°C (-40°F to 140°F)

  • Humidity: ≤ 90% (non-condensing)

• Protection Rating: IP67
